Instruments for Quality Control

HIGH CAPACITY, ANALOGUE CRANE SCALES AND TENSILE DYNAMOMETERS WITH DIAL

Metil Industrie is ISO 9001:2008 certified

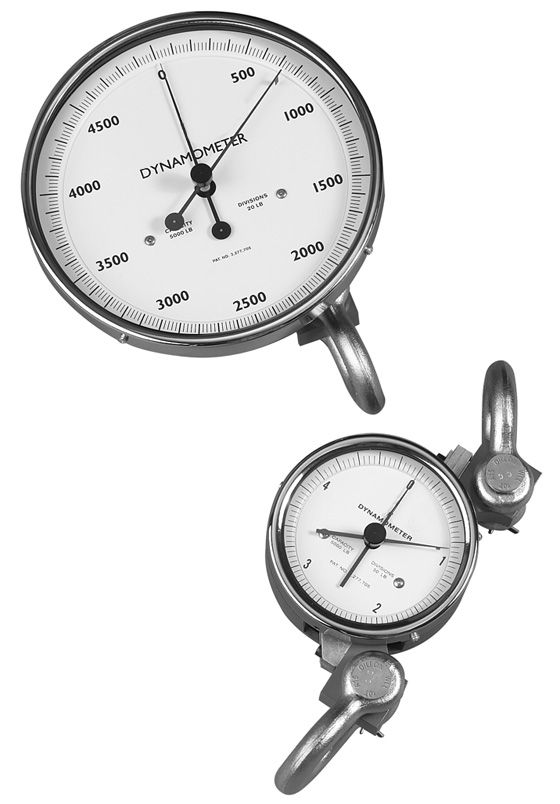

Dynamometer SK

SK

12 capacities from 0-200 kg up to 0-85 Ton, 150 mm diameter dial protected by a plexiglas, very robust construction, accuracy better than / ;- 1 % Ful Scale, zero taring by just turning the dial, supplied with a hook underneath (included in the price) up to 5 Ton. Optional carrying case, Newton readings or remote dial with flexible tube. Hydraulic measuring principle.

Very strong and robust cran escale and tensile dynamometer, resists to schock and breaks, small dimensions.

Click on the image to enlarge
Dynamometer TD5

TD-5

6 capacities from 0-200 kg up to 0-10 Ton, 150 mm diameter dial with maximum reading pointer " MRP " to capture the maximum tensile force during a test (optional standard plexiglas without this MRP), accuracy is beter than +/- 0,5 % Full Scale, supplied with a strong carrying case for protection and transport, optional hook and lifting accessories. Can support up to 25 % overload without influencing the accuracy of the dynamometer.

MRP Maximum Reading Pointer for easy reading of breaking forces during test, small dimensions, leight weight.

Dynamometer WT12

WT-12

5 capacities from 500 kg up to 10 Ton, 300 mm diameter dial for easy reading at distance, special system to block the pointer at maximum during breaking test, accuracy better than +/- 0,5 % Full Scale, supplied with a strong carrying case for protection and transport, optional lifting devices (hook, shackles). Can support up to 25 % overload without influencing the accuracy of the dynamometer.

Very practical and accurate system to block the pointer at maximum during test, large easy to read dial.
